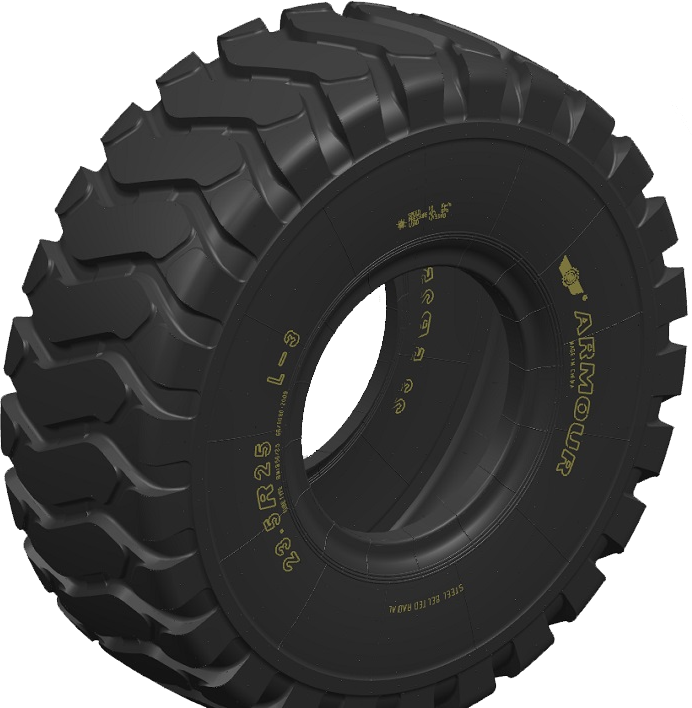

Adapted models: Engineering vehicle
Optimize the structural design and formula design of the steel wire harness layer to ensure good cutting resistance of the tire;
Optimized grounding shape and formula design to ensure good wear resistance.
| Specifications (Imperial) | Level | Type | Pattern code | Standard wheel rims | Tread depth mm | Outer diameter mm | Section Width mm | Standard pressure kpa@10Km/h(A2) | Standard pressure kpa@50Km/h(B) | Single tire load kg@10km/h(A2) | Single tire load kg@50km/h(B) | Driving surface width mm |
17.5R25 176A2/157B | ★ | TT/TL | L-3 | 14.00/1.5 | 25.5 | 1350 | 445 | 475 | 350 | 7100 | 4125 | 382 |
17.5R25 182A2/167B | ★★ | TT/TL | L-3 | 14.00/1.5 | 25.5 | 1350 | 445 | 600 | 475 | 8500 | 5450 | 382 |
20.5R25 186A2/168B | ★ | TT/TL | L-3 | 17.00/2.0 | 30 | 1490 | 520 | 475 | 350 | 9500 | 5600 | 450 |
20.5R25 193A2/177B | ★★ | TT/TL | L-3 | 17.00/2.0 | 30 | 1490 | 520 | 600 | 475 | 11500 | 7300 | 450 |
23.5R25 195A2/176B | ★ | TT/TL | L-3 | 19.50/2.5 | 33 | 1615 | 595 | 475 | 350 | 12150 | 7100 | 530 |
23.5R25 201A2/185B | ★★ | TT/TL | L-3 | 19.50/2.5 | 33 | 1615 | 595 | 600 | 475 | 14500 | 9250 | 530 |
